Decoder



Decoder
·         A device which does the reverse operation of an encoder and is also a circuit that changes a code into a set of signals.

·         A combinational circuit that convert binary information from n input lines to a maximum of 2n unique output lines (binary-coded decimal decoder)
(the  2n output is said to be maximum because in case of the ‘n’ bit coded information has unused bit combination ,the output maybe less than 2n)

·         The example decoder circuit would be AND gate as
=the output of this is  “High” when all its inputs are “High”
=the output is called the “active High output”

·         Apart from that , instead of AND gate, the output of NAND gate will be    “Low “ when all the inputs are “High” and this known as “active Low output”

·         There are some types of decoders:
a.      1-to-2 decoder
b.      2-to-4 decoder
c.       3-to-8 decoder
d.      4-to-16 decoder
·         The most simplest decoder is the 1-to-2 decoder and its truth table is as below:
A
D1
D0
0
0
1
1
1
0

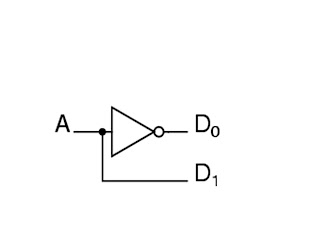

(A is the address and D is the dataline. D0 is not A and D1 is A… The circuit looks like…)
  • More complex than the 1-to-2 decoder is  the 2-to-4 decoder and its truth table is as below:



The 2-to-4 decoder’s circuit is looked as below:






·         The 2-to-4 decoder can also created by combining two 1-to-2 decoder as below:

·

  • For other types of decoder, 3-to-8 decoder and 4-to-16 decoder, the truth table and the circuits are as below:
o   3-to-8 decoder



=3-to-8 decoder also can formed from two 2-to-4 decoder with enable signals…




  • 4-to-16 decoder




 =4-to-16 decoder also can formed by combining two 3-to-8 decoder as   the diagram below:



From the above diagram , the enable inputs of both 3-to-8 decoder originate from a 4th input (the selector between two 3-to-8 decoder)…
= allow  4th input to enable the either the top decoder or bottom decoder ,which produces :
o   Output D0 through D7 for the 1st  decoder
o   Output D8 through D15 for the 2nd  decoder
=decoder-demultiplexor : decoder that contain enable inputs
Eg:
  4-to-16 decoder produced by adding a 4th input that shared among both decoder, producing 16 outputs.

Row select in RAM (Random-Access  Memory )
o   Most RAM use a n-to-2n decoder to convert the selected address on the address bus to one of the row address select lines, thus;
ü  Decoder undoing the encoding so that the original information can be retrieved
Instruction Decoder
o   The part of the CPU that convert the bits stored in the instruction register
o   3-to-8 decoder in the instruction decoder is used to select 2 source registers of the register file in the simple CPU with 8 registers:
=to feed into the ALU as well as the destination register to accept the output of ALU.




Chong Cai Ning B031210080
